•32bit CPU •Support 32bit single-cycle multipliers •384KBs embedded Flash (ECC) support •Support 64KBs SRAM (ECC) •Feature a motor control algorithm accelerator (MAU)
J3-H1
Function Description
Highly scalable platform
32bit CPU architecture, good ecological environment
Large capacity Flash/RAM, rich peripheral resources for platform expansion
Ultra-high reliability
ISO26262 and AEC-Q100 Grade 1 certified
Support -40°C~125°C
15-year design life, >15 years supply chain warranty
High-cost performance
Better price/performance ratio for the same performance/resources
Product performance
System Resources
Peripheral resources
•3-channel CAN-FD, CAN 2.0B compatible •3-channel UART, 1-channel supports UART LIN multiplexing •3-channel SPI (master-slave mode supported) •2-channel I2C (master-slave mode support) •2-channel hardware LIN •2 x 8-channel complementary pulse width modulation (PWM) timers •1 x 4-channel periodic interrupt timer •2 pulse width timers (PWDT) •1 real time clock (RTC)
Simulation
•2 x 12bit AdC, 1Msps, supporting 16-channel •1个8bit DAC •2 x analog comparators with built-in 8bit Dac •4x operational amplifier •1x temperature sensor, ±0.5℃
Package
•LOFP 48 ( 7mmx7mm ) •LQFP 64 ( 10mmx10mm ) •LQFP 100( 14mmx14mm ) •LQFP 144( 20mmx20mm ) •LQFP 176( 24mmx24mm )

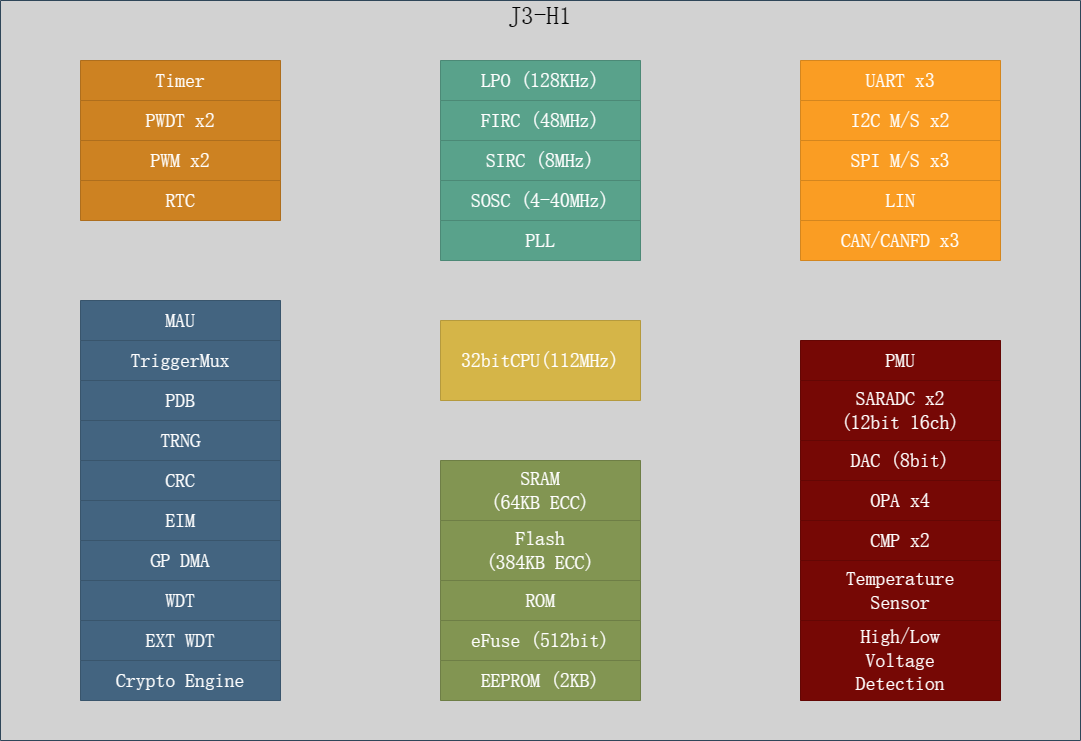

System Block Diagram
-
